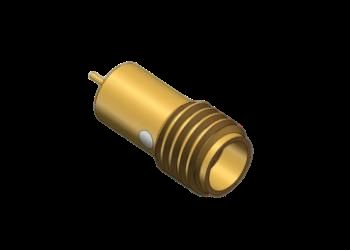

Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female Mini SMA Jack RF Coaxial Connector 18GHz 50Ω
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| اسم المنتج: | موصل الحاجز الإناث SSMA | نموذج: | SSMA (M) -kyd5 |
|---|---|---|---|
| نطاق التردد: | 0.3MHz-18GHz | مقاومة: | 50Ω |
| DWV: | 750 فولت | مقاومة العزل: | ≥ 5000MΩ |
| قائد المركز: | سبيكة النحاس ، مطلي بالذهب | موصل خارجي: | سبيكة النحاس ، مطلي بالذهب |
| معدل التسرب: | ≦ 1.01325 × 10-3 PA.CM3/S | طريقة التركيب: | الحاجز |
| عوازل: | زجاج | عينات: | في الأوراق المالية |
| إبراز: | hermetically sealed SSMA RF connector,50Ω copper alloy SMA jack,18GHz bulkhead coaxial connector,50Ω copper alloy SMA jack,18GHz bulkhead coaxial connector |
||
Hermetically Sealed 50Ω Copper Alloy Bulkhead SSMA Female/Socket RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
SSMA Bulk Connectors are high-frequency, low-loss, miniaturized panel-mounted RF interfaces. Their primary application is in RF systems with 50Ω impedance matching (such as communication devices, test instruments, and satellite terminals) to achieve reliable RF signal transmission across device panels. They are particularly suitable for scenarios requiring installation space and high-frequency signal transmission.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple structures: straight, right angle, cable type, bulkhead screw, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Hermetic Sealed Bulkhead SSMA Female Dimenstion:
Model No.: SSMA(M)-KYD5
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in RF coaxial connectors, adapters, cable assemibles for industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- High End Electronics applications
Packaging and Shipping
Each Bulkhead Jack SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
sales3@xa-elite.com.cn
