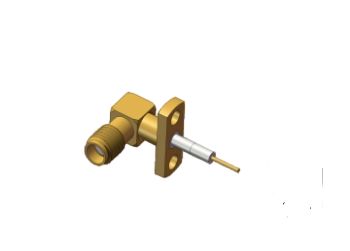

Copper Alloy Right Angle SSMA Jack Mini SMA Female 2 Hole Flange Mount RF Coaxial Connector 18GHz 50Ω
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| اسم المنتج: | الزاوية اليمنى SSMA أنثى 2 ثقب شفة جبل موصل | نموذج: | SSMA-KWFD8 |
|---|---|---|---|
| نطاق التردد: | 0.3MHz-18GHz | مقاومة: | 50Ω |
| DWV: | 750 فولت | مقاومة العزل: | ≥ 5000MΩ |
| قائد المركز: | سبيكة النحاس ، مطلي بالذهب | موصل خارجي: | سبيكة النحاس ، مطلي بالذهب |
| كم المسمار: | الفولاذ المقاوم للصدأ ، النجاح | طريقة التركيب: | 2 حفرة طوق الحاجز |
| عوازل: | PTFE | عينات: | في الأوراق المالية |
| إبراز: | Copper Alloy SSMA RF Connector,Right Angle SMA Female Connector,Flange Mount RF Coaxial Connector,Right Angle SMA Female Connector,Flange Mount RF Coaxial Connector |
||
50Ω Copper Alloy 2 Hole Flange Mount Right Angle SSMA Female/Jack RF Coaxial Connector
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
2 Hole Flange Mount Right Angle SSMA Female Dimenstion:
Model No.: SSMA-KWFD8
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging and Shipping
Each 2 Hole Flange Mount Right Angle SSMA Jack RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
