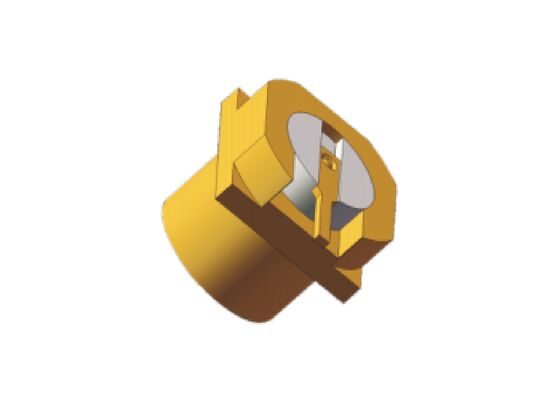

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| اسم المنتج: | موصل SMP RF | مركز الاتصال: | سبائك النحاس، مطلية بالذهب |
|---|---|---|---|
| صدَفَة: | سبائك النحاس، مطلية بالذهب | تكرار: | تيار مستمر ~ 18 جيجا هرتز |
| دوف: | 500 فولت | الجهد المقنن: | 170 فولت |
| المعاوقة: | 50Ω | مقاومة العزل: | 5000 أوم |
| نطاق درجة الحرارة: | -55 درجة مئوية ~ +125 درجة مئوية | جنس: | انثى / جاك |
| تصاعد: | جبل سطح ثنائي الفينيل متعدد الكلور | عازل: | PTFE ، الزجاج |
| عينات: | متاح، في المخزون | ||
| إبراز: | SMP straight PCB RF connector,SMP female surface mount connector,18GHz 50 Ohm SMP connector,SMP female surface mount connector,18GHz 50 Ohm SMP connector |
||
Product Description:
SMP Straight PCB Limited Detent /Smooth Bore Jack Female Surface Mount 50 Ohm
Engineered for demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver superior signal integrity and low VSWR performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for wrenches, significantly speeding up mating and demating cycles while ensuring a secure connection.Offering maximum design flexibility, our portfolio includes straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. We understand that every application has unique requirements, which is why we provide three distinct male plug configurations:
SMP Insertion and extraction force: Full Detent > Limited Detent > Smooth Bore
Outline Dimension of Straight SMP RF Connector Female PCB Surface Mount Connector SMP-JHD72 :
Note1: Engagement Depth 2.79mm
Other surface mount SMP Connectors as following:
Note1: Engagement Depth 2.79mm, Hermeticlly sealed with glass
Applications:
Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Packing & Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm
Shipping:
Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 6-10 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
