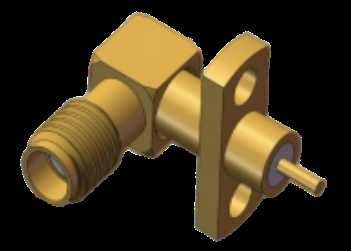

Right Angle SSMA Jack / Female RF Coaxial Connector 2 Hole Flange Mount with Screw 10-36UNS-2
|
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| اسم المنتج: | موصل microstrip أنثى SSMA | نموذج: | إدارة المعلومات المتعلقة بالأمن |
|---|---|---|---|
| نطاق التردد: | 0.3MHz-18GHz | مقاومة: | 50Ω |
| الجهد المقنن: | 250 فولت | DWV: | 750 فولت |
| مقاومة العزل: | ≥ 5000MΩ | قائد المركز: | سبيكة النحاس ، مطلي بالذهب |
| موصل خارجي: | سبيكة النحاس ، مطلي بالذهب | طريقة التركيب: | 4 ثقب شفة جبل |
| أفسد: | 10-36uns-2 | عوازل: | PTFE |
| عينات: | في الأسهم ، المتاحة | ||
| إبراز: | SSMA RF Coaxial Connector,SSMA Jack RF Coaxial Connector,2 Hole Flange SSMA Jack,SSMA Jack RF Coaxial Connector,2 Hole Flange SSMA Jack |
||
2 Hole Flange Mount Right Angle SSMA / Mini SMA RF Coax Microstrip Connector Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | RA SSMA Female Microstrip Connector |
| Model | SSMA-KWFD2 |
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 2 Hole Flange Mount |
| Insulators | PTFE |
| Samples | In Stock, Available |
Product Overview
The SSMA series RF coaxial connectors are compact versions of the SMA interface standard, approximately 70% the size of traditional SMA connectors. These connectors feature:
- Compact size with wide frequency bandwidth
- Superior mechanical and electrical performance
- High reliability in demanding applications
- Threaded connection (10-36UNF-2)
- Characteristic impedance of 50Ω
- Frequency operation up to 30GHz
Interface Dimensions
SSMA Right Angle 2 Hole Flange Mount Microstrip Connectors Dimensions
Outline dimensions for the SSMA-KWFD2 model (Unit: mm).
Other Right Angle SSMA Microstrip Connectors Models:
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each ssma right angle connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount right angle connector models, please check our catalog. While some models are in stock, all can be produced quickly to meet customer requirements.
