تفاصيل المنتج:
شروط الدفع والشحن:
|

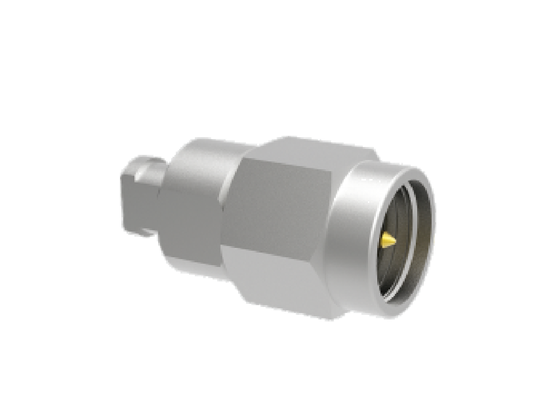

| اسم المنتج: | SMA موصل كابل مستقيم | نموذج: | SMA-J506AG |
|---|---|---|---|
| نطاق التردد: | 0.3 ميجا هرتز-18 جيجا هرتز | مقاومة: | 50Ω |
| دوف: | 1000 فولت | مقاومة العزل: | ≥5000MΩ |
| قائد المركز: | ≥3mΩ. سبائك النحاس، مطلية بالذهب | الموصل الخارجي: | ≥2mΩ. سبائك النحاس، مطلية بالذهب |
| كابل التزاوج: | CXN3506 كابل | العوازل: | بتف |
| عينات: | في الأوراق المالية | VSWR: | .31.3 |
| فقدان الإدراج: | .30.3 ديسيبل | درجة حرارة: | -55 درجة مئوية ~ 125 درجة مئوية |
| متانة: | 500 دورة | ||
| إبراز: | 50Ω SMA RF connector,Aerospace RF connector up to 18GHz,SMA plug for cable mating |
||
The SMA product series RF coaxial connector is a compact high-frequency coaxial connector with an operating frequency up to 18 GHz. It features small size, wide frequency bandwidth, excellent mechanical and electrical performance, and reliable connection. It is one of the most widely used RF coaxial connectors, and is extensively applied in aviation, aerospace, marine and other fields.
